A Vinyl Liner Skimmer Leak in Houston That Pressure Tests Missed

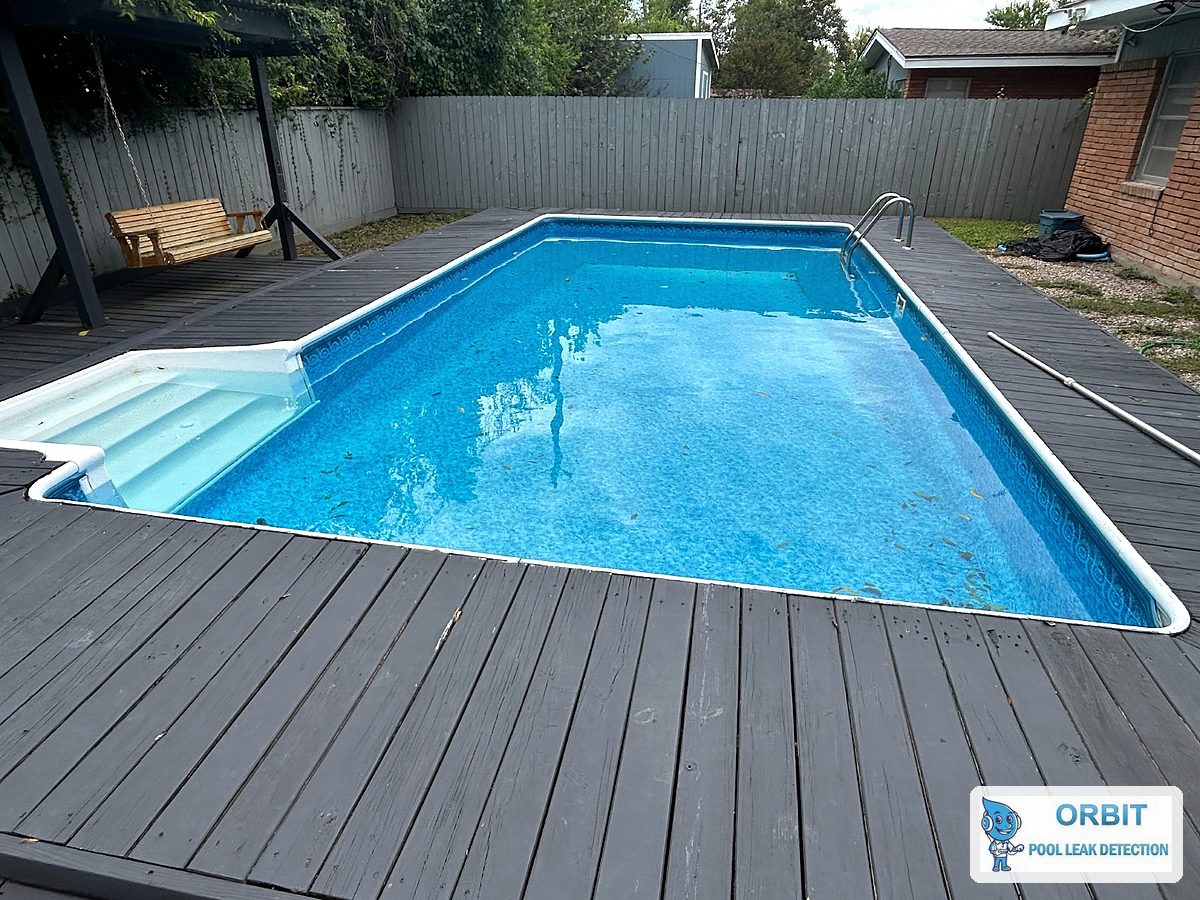

Not every leak lives in the pipes. On this Houston pool, a vinyl liner skimmer leak hid right at the waterline, while every line underground passed its test. The story shows why we never stop at pressure testing alone.

Here is how the visit went, and what vinyl liner owners can learn from it.

How a vinyl liner pool is put together

A vinyl pool has a flexible liner held against a wall. The skimmer sits in that wall. To keep water in, the liner is clamped between the skimmer body and a faceplate, with gaskets in between. That joint has to stay tight for years.

Over time, the liner can pull, shrink or wear around the opening. The gaskets age too. So the skimmer opening becomes one of the first places we look on any vinyl pool.

Every line held pressure

First, our technician pressure-tested the plumbing at 12 psi. The pool returns held. The cleaner line held. Even the skimmer line and the skimmer front hole held. Next came the main suction drain and the common line, which also passed. The spa lines and water feature lines held as well, and the equipment passed.

In short, the pipes were tight. That is good news, because it means nothing needed digging up. However, the pool was still losing water, so the search moved up to the surface.

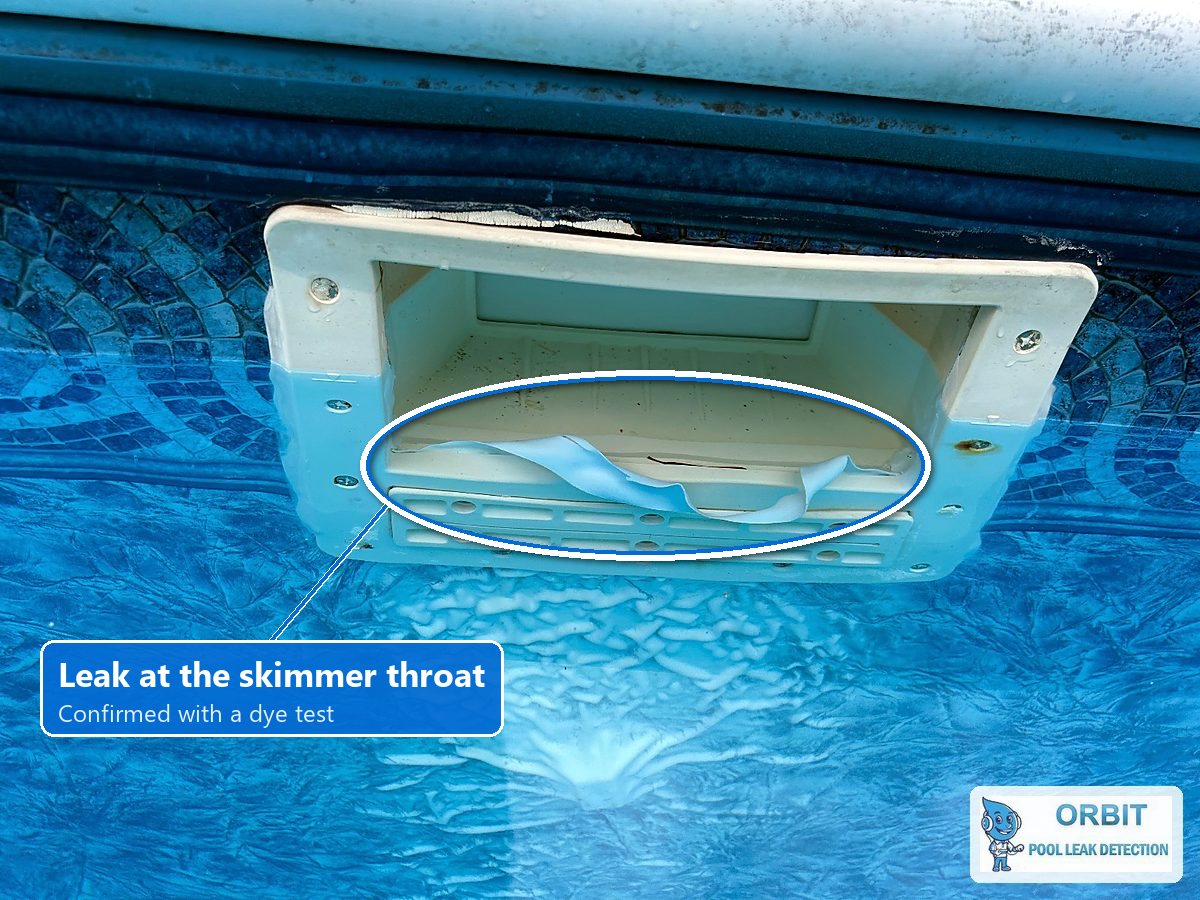

Dye at the vinyl liner skimmer leak

Next, we checked the shell. The lights passed. A dye and visual check of the liner surface found no issue. Then our technician released dye at the skimmer throat. This time the dye did not drift. It pulled into the throat, which confirmed the leak.

We also ran hydrostatic tests on the main drain, the spa suction and the water feature suction, plus the sheer descent. All of them passed. That left one clear answer: the skimmer throat.

What happened on the spot

Because the leak was small and easy to reach, our technician sealed the skimmer throat with pool putty during the visit. Then the plan became simple. The water level will be monitored over the next days. If it holds, the throat was the whole problem. If it keeps dropping, the next visit starts with that data in hand.

Why pressure tests alone can miss this

A pressure test checks the pipe behind the skimmer. It does not check the joint between the liner and the skimmer body. As a result, a skimmer line can pass while water still slips out at the throat. Dye fills that gap, because it shows movement right at the surface.

That is also why we test in a set order. Plumbing first, then fittings and openings, then the rest of the shell. Each step rules something out before the next one starts.

Signs to watch on a vinyl pool

Some clues point toward the skimmer on a vinyl pool. The level may stop dropping once it falls below the skimmer opening. The liner around the faceplate may look loose or wrinkled. You might also notice wet ground behind the skimmer. Still, only a test confirms where the water goes.

Read more about skimmer leak repair and our full pool leak detection service. You can also see how we work in the city on our pool leak detection in Houston page, and past clients have shared their thoughts on Google.

Do vinyl liner pools leak more at the skimmer?

The skimmer is a common spot, because the liner is clamped there and moves with the water. Lights, returns and steps are other places we check on every vinyl pool.

Is pool putty a permanent fix?

It can hold well on a small throat leak. Monitoring the level afterward shows whether it did the job or whether a larger repair is needed.

Is your vinyl pool dropping? Arrange a leak detection and we will check the liner, the openings and every line.
